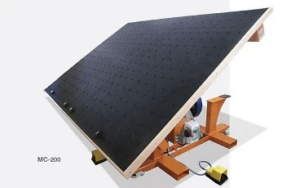

Turomas MC-200
Glass loading table with tilting loading system and useful area: 3160 x 2350 mm
Turomas glass loading and unloading tables offer reliable and compact solutions for limited spaces, while providing autonomy and versatility to the cutting line.
Equipped with a hydraulic lateral table tilting system controlled by a sensitive drive to facilitate loading or unloading of the sheet using an external glass handling device. They feature an inclinometer, frequency converter, and hydraulic unit that guarantee smooth and progressive movement.
The table incorporates retractable supports for loading or unloading the glass. A safety system prevents tilting if these supports are not deployed and, at the same time, prevents the supports from retracting if the table is tilted.
The table structure also incorporates a safety locking device that prevents accidental lowering. Usable Area: 3160 x 2350 mm (145.6” x 92.5”)
Loading System: Tilting
Positioning System: Manual
Extremely robust structural design
Cast wheels for table movement
Optimized air cushion
Pneumatic tilting system
Aluminum tabletop
Turomas MC-300
Glass loading table: with tilting loading system and usable area of 3920 x 2800 mm
Turomas glass loading and unloading tables offer reliable and compact solutions for confined spaces, while providing autonomy and versatility to the cutting line.
Equipped with a hydraulic lateral table tilting system controlled by a sensitive drive to facilitate sheet loading or unloading using an external glass handling device. They feature an inclinometer, frequency converter, and hydraulic unit that guarantee smooth and progressive movement.
The table incorporates retractable supports for loading or unloading the glass. A safety system prevents tilting if these supports are not deployed and, at the same time, prevents the supports from retracting if the table is tilted.
The table structure also incorporates a safety locking device that prevents accidental lowering.
The table structure also incorporates a safety locking device that prevents accidental lowering.
Usable Area: 3920 x 2800 (154.3″ x 110.2″)
Turomas MC-600
Mesa de carga para vidrio: con sistema de carga basculante y área útil de 6650 x 3880 mm
Las mesas de carga y descarga de vidrio Turomas ofrecen soluciones fiables y compactas para espacios reducidos a la vez que aportan autonomía y versatilidad a la línea de corte.
Equipada con un sistema hidráulico de basculación lateral de la mesa pilotado por un accionamiento sensitivo para facilitar la carga o descarga de la hoja mediante un dispositivo externo de manipulación de vidrio. Disponen de inclinómetro, variador de frecuencia y grupo hidráulico que garantizan un movimiento suave y progresivo.
La mesa incorpora unos soportes retráctiles para la carga o descarga del vidrio. Un sistema de seguridad evita la basculación si estos soportes no se han desplegado y, a la vez, evita que los soportes se replieguen si la mesa está basculada.
La estructura de la mesa incorpora adicionalmente un dispositivo de bloqueo de seguridad que evita un descenso accidental de la misma.
The table structure also incorporates a safety locking device that prevents accidental lowering. Usable area: 6650 x 3880 mm (261.8” x 152.8”)
